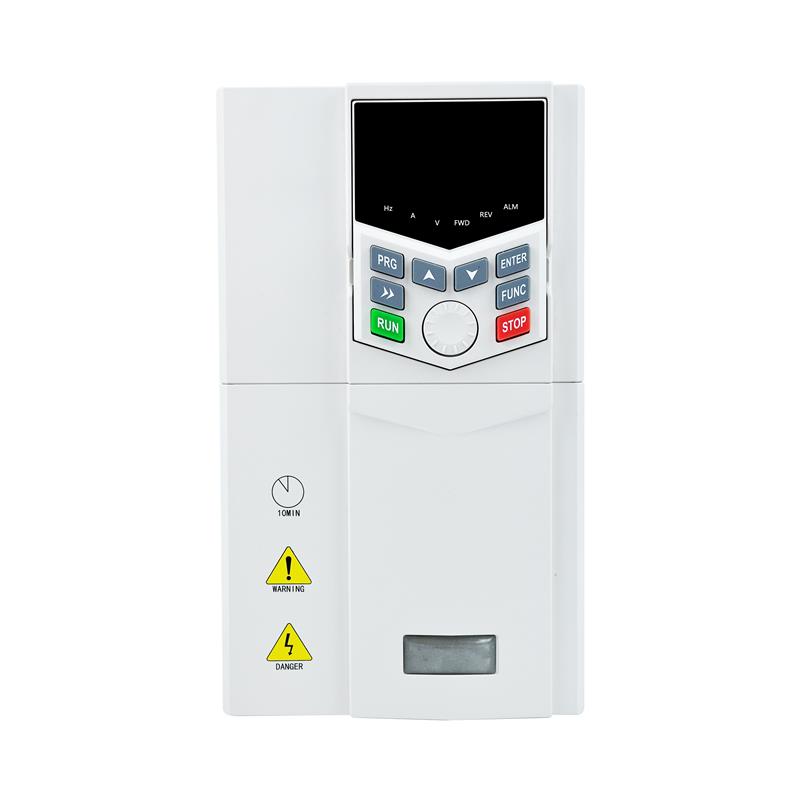

The AE-ZYV650 series frequency converters adopt the latest design concepts and modular design concepts in the industry. Compared with traditional frequency co nverters, they have essential improvements in terms of functionality, performance, reliability, and maintainability. We have also made new upgrades in both hardware and software, which are specifically reflected in:

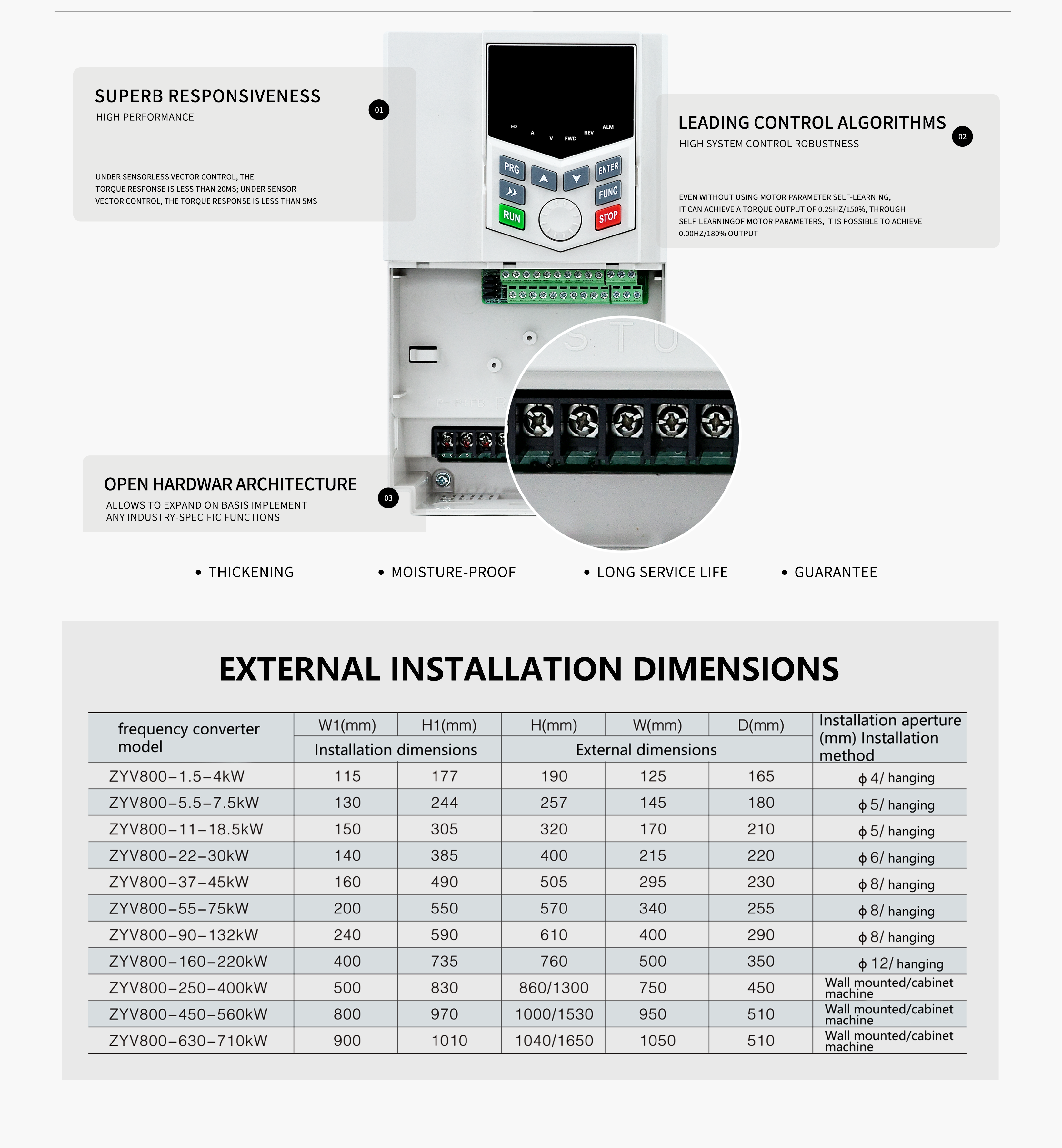

Superb responsiveness
The control core of the AE-ZYV650 series frequency converter is based on a 32-bit CPU, and under sensorless vector control, the torque response is less than 20ms; U nder sensor vector control, the torque response is less than 5ms.
Leading control algorithms
At the core control layer of the motor, the AE-ZYV650 series inverter innovatively c ombines vector control and VF control technology perfectly. The product is not sen sitive to changes in motor parameters, and even without using motor parameter sel f-learning, it can still achieve a torque output of 0.25Hz/150%. Through self-learning of motor parameters, it is possible to achieve 0.00Hz/180% output to a shorter outp ut. Advanced algorithms greatly improve the robustness of system control while ensu ring performance

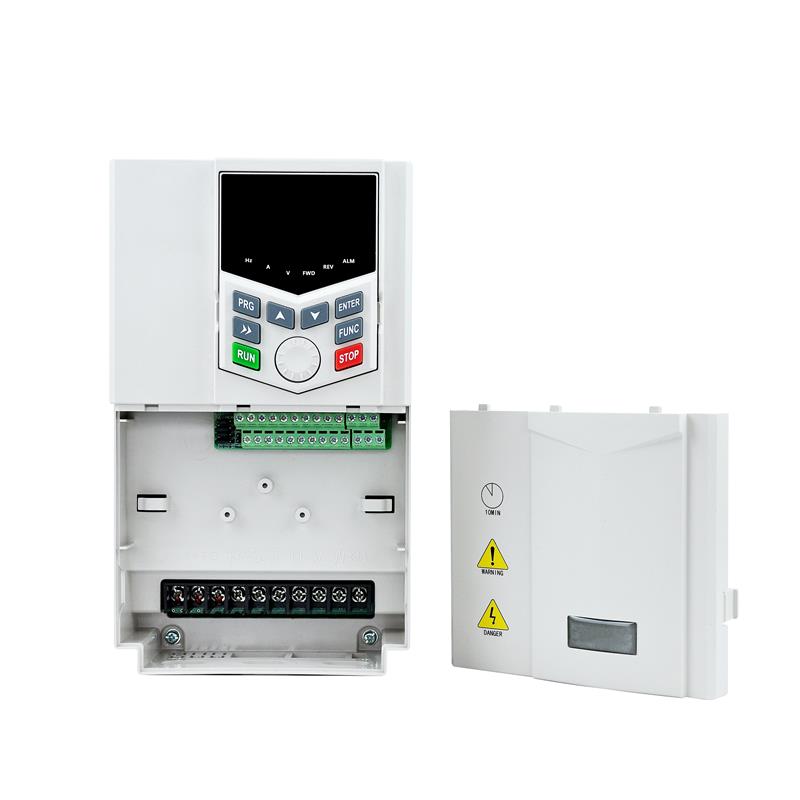

Open hardware architecture
The AE-ZYV650 series frequency converter provides a powerful SPI interface with open standard MODBUS protocol, which allows customers to expand on this basisImplement any industry-specific functions in the form of a card without changing the hardware or software design of the host.
Powerful and user-friendly features
The power of the AE-ZYV650 series frequency converter is not only reflected in its rich functionality, but also in the optimization and innovative design of traditional functions. At the same time, it leads the trend of industrial design, adopting many innovative designs in motor speed tracking technology, PID control, high and low frequency operation mode switching, intelligent emergen cy acceleration and deceleration adjustment, parameter copying, fast current limiting function, output phase loss and current im balance protection, and other functional designs.
Typical applications
Machine tools, air compressors, fans, central air conditioning, mixers, injection molding machines, wire drawing machines, feede rs, crushers, conveyor belts, and paper machine production lines.
